WDM Filter 1310-1550nm
|
Features Low Insertion Loss High Isolation High Stability and reliability |
Applications Communications System Metro/Access CATV |
Technical Paremeter
|
Type Parameter |
1310/1550 FWDM |
1310/1550 (HFWDM) |
|
Pass band (nm) |
1310+/-40 or 1550+/-40 |
1550±15 |
|
Reflection band (nm) |
1310+/-40 or 1550+/-40 |
1310±40 |
|
Pass channel insertion loss (dB) |
≤0.8 |
≤1.0 |
|
Reflection channel insertion loss (dB) |
≤0.6 |
≤1.0 |
|
Reflection Isolation (dB) |
≥30 |
≥45 |
|
Pass Isolation (dB) |
≥15 |
≥45 |
|
PDL(dB) |
≤0.2 |
|
|
Directivity (dB) |
≥45 |
|
|
Return loss (dB) |
≥45 |
|
|
Power handling (mW) |
≤500 |
|
|
Operating temperature (℃) |
0 ~ +70 |
|
|
Storage temperature (℃) |
-40 ~ +85 |
|
|
Dimensions (mm) |
φ5.5×L34 (250um bare fiber) φ5.5×L40 (900um loose tube) |
|
|
Fiber type |
SMF-28e |
|

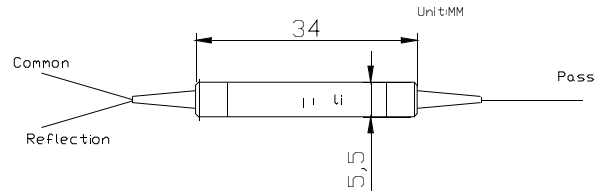

Dimensions:
Ordering Information
|
FWDM HFWDM |
Port Type |
Wavelength |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
|
1×2 |
T1550/R1310 |
250=250um |
bare |
1=SMF-28e |
1= 1m |
NE=None |
|
|
T1310/R1550 |
fiber |
FA=FC/APC |
|||||
|
900=900um |
loose |
FC=FC/UPC |
|||||
|
tube |
SA=SC/APC |
||||||
|
3000=3mm |
loose |
SC=SC/UPC |
|||||
|
tube |
LC=LC/UPC |
||||||
|
LA=LC/APC |
|||||||
|
MU=MU/UPC |
|||||||
|
XX=Other |
|||||||
