WDM Coupler – 980-1310nm and 1064-1310nm
|
Features High Isolation Low Insertion Loss High Reliability |
Applications Fiber Amplifier Fiber Laser Laboratory |
Technical Paremeter
|
Type |
980/1310 |
1064/1310 |
||||
|
Operating wavelength (nm) |
980 and 1310 |
1064 and1310nm |
||||
|
Operating bandwidth (nm) |
±10/±15 |
±15/±15 |
||||
|
Grade |
P |
A |
P |
A |
||
|
Insertion loss (dB) |
≤0.3 |
≤0.4 |
≤0.3 |
≤0.4 |
||
|
Isolation (dB) |
≥18 |
≥16 |
≥17 |
≥16 |
||
|
PDL (dB) |
≤0.1 |
≤0.15 |
≤0.1 |
≤0.15 |
||
|
Directivity (dB) |
≥55 |
|||||
|
Operating temperature (℃) |
-40 ~ +85 |
|||||
|
Fiber |
HI1060FLEX or OFS980 |
|||||
|
Configuration |
1×2 or 2×2 |
|||||
|
Pigtail type |
250um bare fiber |
900μm loose tube |
2mm/3mm loose tube |
|||
|
Dimensions |
Ф3.0×54 |
Ф3.0×70 |
90x16x9 |
|||

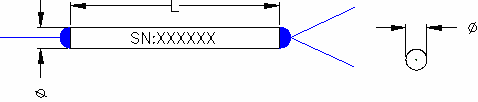

Dimensions:
Ordering Information
|
WDMC |
Grade |
Port |
Wavelength |
Pigtail |
Fiber |
Length |
Connector |
Package |
|
P= P grade |
1×2 |
980/1310 |
0=250um bare fiber |
4=HI1060FLEX |
1=1m |
NE=None FC=FC/UPC SC=SC/UPC FA=FC/APC SA=SC/APC ST=ST/UPC LC=LC/UPC xx=Others |
3×60 |
|
|
A= A Grade |
1064/1310 |
1=900um loose tube |
8=OFS980 |
S=Specify |
||||
|
2=2mm loose |
||||||||
|
tube |
||||||||
|
3=3mm loose |
||||||||
|
tube |
