WDM C band Red _ Blue Filter 1530-1543.2
|
Features Low Insertion Loss High Isolation High Stability and reliability |
Applications System Monitoring Fiber Amplifier Fiber Optical Amplifier |
Technical Paremeter
|
Parameter |
Value |
|
Pass Wavelength(nm) |
1547-1561 (or 1530-1543.2) |
|
Reflection Wavelength (nm) |
1530-1543.2 (or 1547-1561.0) |
|
Pass insertion Loss (dB) |
≤0.6 |
|
Reflection Insertion Loss (dB) |
≤0.4 |
|
Pass Channel Isolation (dB) |
≥30 |
|
Reflection Isolation (dB) |
≥13 |
|
Channel flatness (dB) |
≤0.3 |
|
Directivity (dB) |
≥55 |
|
Return loss (dB) |
≥50 |
|
PDL (dB) |
≤0.2 |
|
Power handling (mW) |
≤300 |
|
Fiber Type |
SMF-28e |
|
Operating temperature (℃) |
0 ~ +70 |
|
Storage temperature (℃) |
-40 ~ +85 |
|
Dimensions (mm) |
φ5.5×L35 |

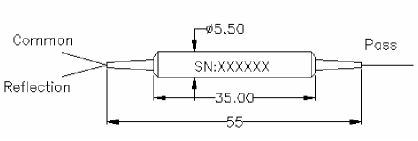

Dimensions:
Ordering Information
|
FWDM |
Wavelength |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
|
T1547-1561R1530-1543.2 T1530-1543.2/R1547-1561 |
250=250um fiber 900=900um |
bare
loose |
1=SMF-28e |
1= 1m |
NE=None FA=FC/APC FC=FC/UPC |
|
|
tube |
SA=SC/APC |
|||||
|
SC=SC/UPC |
||||||
|
LC=LC/UPC |
||||||
|
LA=LC/APC |
||||||
|
XX=Other |
||||||
