Variable Optical Attenuator, VOA 1310-1550-850 nm, Manual
|
Features High precision Wide attenuation range Low IL Compact size |
Applications Optical communication systems test Optics lab use |
Technical Paremeter
|
Type Parameter |
1310nm |
1550nm |
1310/1550nm |
850, 1310nm |
|
Wavelength (nm) |
1310 ± 40 |
1550 ± 40 |
1310 ± 40 & 1550 ± 40 |
850 ± 40 or 1310 ± 40 |
|
Attenuation range (dB) |
0.6 ~ 60 |
0.6 ~ 60 |
0.8 ~ 60 |
0.8 ~ 40 |
|
IL (dB) |
≤0.6 |
≤0.6 |
≤0.8 |
≤0.8 |
|
Return loss (dB) |
≥50 |
≥30 |
||
|
Fiber Type |
SMF-28e |
Multimode fiber 50/125 or 62.5/125 |
||
|
Adjustment Precision (dB) |
0.02 |
|||
|
PDL (dB) |
≤0.15 |
|||
|
Operating temperature (℃) |
0 ~ +70 |
|||
|
Storage temperature (℃) |
-40 ~ +85 |
|||
|
Dimension (mm) |
26 x 16 x 8 |
|||

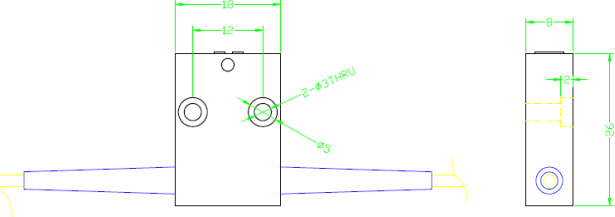

Dimensions:
Ordering Information
|
MVOA |
Wavelength |
Adjustment Type |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
|
85=850 |
1= Hand |
900=900um |
loose |
1=SMF-28e |
1= 1m |
NE=None |
|
|
13=1310 |
adjustment |
tube |
2=50/125 |
FA=FC/APC |
|||
|
15=1550 |
2= Screw |
2000=2mm |
loose |
3=62.5/12.5 |
FC=FC/UPC |
||
|
1315=1310/1550 |
adjustment |
tube |
SA=SC/APC |
||||
|
3000=3mm |
loose |
SC=SC/UPC |
|||||
|
tube |
LC=LC/UPC |
||||||
|
LA=LC/APC |
|||||||
|
MU=MU/UPC |
|||||||
|
XX=Other |
|||||||
