Variable Optical Attenuator – MVOA – Manual
|
Features High precision Wide attenuation range Low Insertion Loss Compact size |
Applications Optical communication systems test Optics lab use |
Technical Paremeter
|
Type Parameter |
1064 |
|
Wavelength (nm) |
1064 ± 20 |
|
Attenuation range (dB) |
0.6 ~ 60 |
|
Insertion Loss (dB) |
≤0.6 |
|
Return loss (dB) |
≥50 |
|
Fiber Type |
HI1060 |
|
Adjustment Precision (dB) |
0.02 |
|
PDL (dB) |
≤0.15 |
|
Operating temperature (℃) |
0 ~ +70 |
|
Storage temperature (℃) |
-40 ~ +85 |
|
Dimension (mm) |
26 x 16 x 8 |

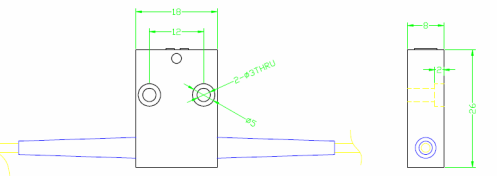

Dimensions:
Ordering Information
|
MVOA |
Wavelength |
Adjustment Type |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
|
1064 |
1= Hand |
900=900um |
loose |
4=HI1060 |
1= 1m |
NE=None |
|
|
adjustment |
tube |
FA=FC/APC |
|||||
|
2000=2mm |
loose |
FC=FC/UPC |
|||||
|
tube |
SA=SC/APC |
||||||
|
3000=3mm |
loose |
SC=SC/UPC |
|||||
|
tube |
LC=LC/UPC |
||||||
|
LA=LC/APC |
|||||||
|
MU=MU/UPC |
|||||||
|
XX=Other |
|||||||
