Tap PD Monitor
|
Features Low insertion loss Compact Size, Integrated Device Customized Tap Ratio Available |
Applications Gain Monitoring for Amplifier Optical Network switch protection Monitoring |
Technical Paremeter
|
Parameter |
Unit |
Value |
|
|
Operating wavelength |
nm |
1310 or 1550, |
|
|
Bandwidth |
nm |
1260~1360/1460~1620 |
|
|
Tap ratio |
% |
1% |
5% |
|
Responsibility |
mA/W |
8 |
40 |
|
Insertion loss |
dB |
≤0.35 |
≤0.6 |
|
WDL |
dB |
≤0.3 |
|
|
PDL |
dB |
≤0.1 |
|
|
TDL |
dB |
≤0.3 |
|
|
Return Loss |
dB |
≥45 |
|
|
PD Responsibility |
mA/mW |
≥0.85 (0.9 typical) |
|
|
PD Dark current |
Na |
≤1.0 |
|
|
Operating temperature |
℃ |
0 ~ +70 |
|
|
Storage temperature |
℃ |
-40 ~ +85 |
|
|
Relative humidity |
% |
20% ~ 80% |
|
|
Power |
mW |
≤500 |
|
|
Dimensions |
mm |
Ф3.5 × L26 or Ф5.5 × L26 |
|

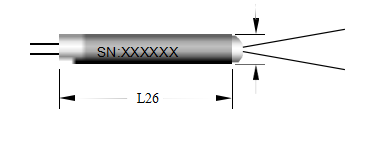

Dimensions:
Ordering Information
|
TPM |
Wavelength |
Coupling |
Pigtail |
Fiber |
length |
Connector |
Package |
|
13=1310 15=1550 1315=1310/1550 |
1=1% 5=5% 10=10% |
250=250um bare fiber 900=900um loose tube |
1=SMF-28e |
1= 1m |
NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC LC=LC/UPC LA=LC/APC XX=Other |
5.5×26 3.5×26 |
