Pump Laser Protector – Single Mode – 975 nm
|
Features Low Insertion Loss High Power High stability and reliability |
Applications Fiber Laser |
Technical Paremeter
|
Parameter |
Values |
|
Pump laser Wavelength (nm) |
915 or 975 |
|
Bandwidth (nm) |
±15 |
|
Insertion Loss (dB) |
≤0.8(Typ 0.5) |
|
Operating Signal Wavelength (nm) |
1020~1120 |
|
Backward Signal Attenuation |
≥30 |
|
Return loss (Input/output) (dB) |
≥50 |
|
Power handling (W) |
1,10 |
|
Fiber Type |
HI1060 |
|
Operating temperature (℃) |
-5 ~ +65 |
|
Storage temperature (℃) |
-40 ~ +85 |
|
Package(mm) |
Dia 5.5×35 |

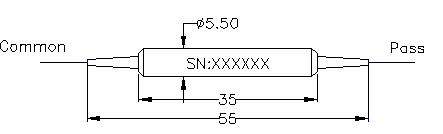

Dimensions:
Ordering Information
|
PLP |
Wavelength |
Pigtail Type |
Fiber Type |
Length |
Power |
Package |
|
915 975 |
900=900um loose tube |
4=HI1060 |
0.8= 0.8m |
1W |
5.5×35 |
