Polarization Maintaining Optical Circulator – 3 Port
Description
The Polarization Maintaining Optical Circulator (PM Circulator) is a compact lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3, while blocking the reflected light. The component provides high isolation, low insertion loss, high extinction ratio, and excellent environment stability.
|
Features Low Insertion Loss High Extinction Ratio and High Isolation High stability and reliability |
Applications EDFA Fiber Optical Instrument Fiber Sensor Fiber Laser |
Technical Paremeter
|
Type Parameter |
Type A |
Type B |
Type B |
|
Operating wavelength (nm) |
1310 or 1550 |
1064 |
|
|
Bandwidth (nm) |
30 |
±20 |
±5 |
|
Typ. Isolation (dB) |
46 |
30 |
30 |
|
Isolation (dB) |
≥40 |
≥20 |
≥25 |
|
Typ. Insertion Loss (dB) |
0.7 |
0.6 |
1.8 |
|
Insertion Loss (dB) |
≤0.9 |
≤0.8 |
≤2.1 |
|
Extinction Ratio (dB) |
≥22 |
≥20 |
≥20 |
|
Cross Talk (dB) |
≥50 |
||
|
Return loss (dB) |
≥50 |
||
|
Power handling (mW) |
≤300 |
||
|
Fiber Type |
Panda Fiber |
||
|
Operating temperature (℃) |
-5 ~ +70 |
-5 ~ +50 |
|
|
Storage temperature (℃) |
-40 ~ +85 |
||
|
Dimensions (mm) |
φ5.5×L35 |
||

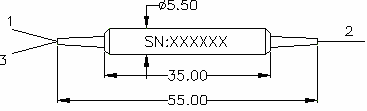

Dimensions:
Ordering Information
|
PMCIR |
Port |
Type |
Wavelength |
Axis Alignment |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
3=3 Port |
A B |
1064 1310 1550 |
F=Fast axis blocked |
250=250um bare fiber 900=900um loose tube 3000=3mm loose tube |
5=Panda fiber |
0.8= 0.8m 1=1m |
NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC XX=Other |
