Polarization Beam Splitter Combiner, PBS PBC, 980nm
Description
the Polarization Beam Combiner & Splitter is a device with compact size , which combines two orthogonal polarization signals into one output fiber. PBC/PBS is commonly applied to combining the reflected light of fiber laser with fixed phase difference to one fiber ,to receive the interferometric fringe in Fiber Optics Current Transducer(Foct), Gyro, Raman Amplifier,with high extinction ratio. PBC/PBS can also be used as a PM splitter.
|
Features Low Insertion Loss High Extinction Ratio High Stability and Reliability |
Applications Fiber Laser |
Technical Paremeter
|
Type Parameter |
Value |
|
|
Wavelength (nm) |
980 |
|
|
Operating Bandwidth (nm) |
±20 |
|
|
Typ. Insertion Loss (dB) |
0.90 |
|
|
Insertion Loss (dB) |
≤1.1 |
|
|
Extinction Ratio (dB)(only for PBS) |
≥20 |
|
|
Directivity (dB) |
≥50 |
|
|
Return loss (dB) |
≥50 |
|
|
Power handling (mW) |
≤300 |
|
|
Fiber Type |
Port 1 &2 |
Panda Fiber |
|
Port 3 |
HI1060 or PM panda fiber |
|
|
Operating temperature (℃) |
-5~+50 |
|
|
Storage temperature (℃) |
-40 ~ +80 |
|
|
Dimensions (mm) |
φ5.5×L35 |
|

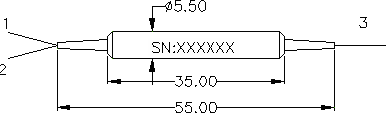

Dimensions:
Ordering Information
|
PBS PBC |
Port |
Wavelength |
Pigtail Type |
Fiber Type For Port 3 |
Length |
Connector |
|
1×2 |
980=980nm |
250=250um bare fiber 900=900um loose tube |
3=PM fiber,Slow axis align to Port 1 4=PM fiber, Slow axis align 45° to port 1 7=HI780 |
0.8= 0.8m 1=1m |
NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC |
|
|
XX=Other |
