PM Tap-PD Monitor
Description
The Polarization Maintaining Isolator (PM Isolator) is disigned to transmit positive light ,while blocking the reflected light from the terminal. The PM isolator is characterized with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. it´s the critical device of polarization maintaining fiber amplifers, fiber lasers, high speed communication systems and instrumentation applications, EDFA, PM Isolator has ´slow axis working,fast axis blocked´ and ´both axis woring´ can be selected
|
Features Low insertion loss Compact Size, Integrated Device Customized Tap Ratio Available |
Applications Gain Monitoring for Amplifier Optical Network switch protection Monitoring |
Technical Paremeter
|
Parameter |
Unit |
Value |
|||||
|
Operating wavelength |
nm |
1310 or 1550, |
|||||
|
Bandwidth |
nm |
±50 |
|||||
|
Tap ratio |
% |
1% |
2% |
5% |
10% |
||
|
Insertion loss |
dB |
≤0.40 |
≤0.50 |
≤0.60 |
≤0.90 |
||
|
Responsibility |
1310 |
mA/W |
6-14 |
12-23 |
30-60 |
60-110 |
|
|
1550 |
mA/W |
7-15 |
14-25 |
35-65 |
70-120 |
||
|
ER |
dB |
≥20 |
|||||
|
Return Loss |
dB |
≥45 |
|||||
|
Responsivity Temp.Dependence((λc) |
dB |
≤0.3 |
|||||
|
Responsivity Polarization Dependence |
dB |
≤0.1 |
|||||
|
PD Dark current (@70 ℃,-5V bias) |
0.5G Bandwidth |
nA |
8 |
||||
|
2.0G bandwidth |
nA |
2 |
|||||
|
Max Power on Photodetector |
mW |
10 |
|||||
|
Operating temperature |
℃ |
0 ~ +70 |
|||||
|
Storage temperature |
℃ |
-40 ~ +85 |
|||||
|
Fiber Type |
Panda fiber |
||||||
|
Dimensions |
mm |
Ф5.5 × L25 |
|||||

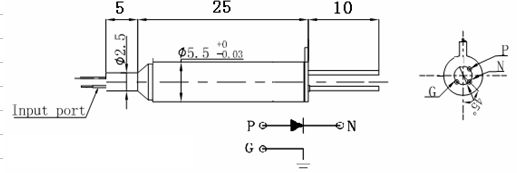

Dimensions:
Ordering Information
|
PMTPM |
Wavelength |
Coupling |
Bandwidth |
Pigtail |
Fiber |
length |
Connector |
Package |
|
13=1310 |
1=1% |
0.5=0.5G |
250=250um |
5=Panda |
1= 1m |
NE=None |
5.5×25 |
|
|
15=1550 |
5=5% |
2=2G |
bare fiber |
fiber |
FA=FC/APC |
|||
|
10=10% |
900=900um |
FC=FC/UPC |
||||||
|
loose tube |
SA=SC/APC |
|||||||
|
SC=SC/UPC |
||||||||
|
LC=LC/UPC |
||||||||
|
LA=LC/APC |
||||||||
|
XX=Other |
