PM Filter WDM 980-1064, 1030-1064, 980-1550, 1550-1064,1480-1550nm
Description
The PM Fliter Wavelength Division Multiplexer combines two different wavelength into one fiber, based on environmentally stable thin film filter technology. The PM FWDM is designed mainly for EDFA, Pump lasers,commucation system,characterized with high isolation, low insertion loss, high return loss, excellent environmental stability ,high power handling capability and wide band.
|
Features
Low Insertion Loss High Extinction Ratio & High Isolation High stability and reliability |
Applications Fiber Laser Fiber Amplifier Testing equipment |
Technical Paremeter
|
Type Parameter |
980/1064 |
1030/1064 |
980/1550 |
1550/1064 |
1480/1550 |
|
|
Pass wavelength (nm) |
960~990 or 1020~1080 |
1064+/-2.5 |
1520~1580 |
1500~1600 |
1520~1580 |
|
|
Reflection wavelength (nm) |
1020~1080 or 960~990 |
1030+/-10 |
960~990 |
1040~1064 |
1480+/-10 |
|
|
Pass Insertion Loss (dB) |
≤0.8 |
≤0.8 |
≤0.7 |
≤0.8 |
≤0.8 |
|
|
Reflection Insertion Loss (dB) |
≤0.6 |
≤0.6 |
≤0.5 |
≤0.6 |
≤0.6 |
|
|
Pass channel Isolation (dB) |
≥25 |
≥25 |
≥25 |
≥25 |
≥25 |
|
|
Reflection Isolation (dB) |
≥13 |
≥13 |
≥13 |
≥13 |
≥13 |
|
|
Channel Flatness (dB) |
≤0.3 |
|||||
|
Extinction Ratio (dB) |
≥20 |
|||||
|
Return Loss (dB) |
≥50 |
|||||
|
Insertion loss thermal stability (dB/℃) |
≤0.005 |
|||||
|
Power handling (CW,total) (mW) |
≤300 |
|||||
|
Fiber Type |
Common& Pass port |
PM 980 |
PM 980 |
PM 1550 |
PM 1550 |
PM1550 |
|
Reflection Port |
PM 980 |
PM 980 |
HI1060 or PM 980 |
HI1060 or PM 980 |
SMF-28e or PM1550 |
|
|
Operating temperature (℃) |
0 ~ +65 |
|||||
|
Storage temperature (℃) |
-40 ~ +85 |
|||||
|
Dimensions (mm) |
φ5.5×L35 |
|||||

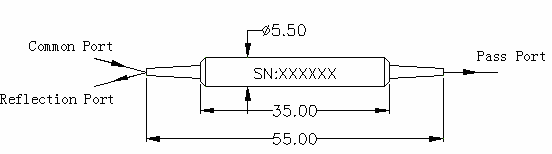

Dimensions:
Ordering Information
|
PMFWDM |
Port Type |
Wavelength |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
1×2 |
980T/1064R 980R/1064T |
250=250um bare fiber 900=900um loose tube |
5=Panda fiber |
0.8=0.8m 1=1m |
NE=None FA=FC/APC |
|
|
1550T/980R |
3000=3mm loose tube |
FC=FC/UPC |
||||
|
1550T/1064R |
SA=SC/APC |
|||||
|
1064T/1030R |
SC=SC/UPC |
|||||
|
1550T/1480R |
XX=Other |
