PM Filter Coupler Module – 2 x 2
Description
The PM Filter Coupler( both axis working) is characterized with low insertion loss, high return loss, high extinction ratio and excellent environmental stability and reliability, widely applied as a PM splitter,which can divide the signal into variousratios.the PM Filter Coupler support the lightwave of each polarization to work, without blocking any polarization. So, It performs prosperly in Foct,Gyro,and other polarization maintaining fiber system
|
Features Low Insertion Loss High Extinction Ratio &High Isolation High Stability and Reliability |
Applications Fiber Amplifier Fiber Optical Instrument Power Monitoring Fiber Sensor |
Technical Paremeter
|
Parameter |
1 x 2 |
2 x 2 |
||||
|
Wavelength (nm) |
1310, 1550 |
980,1064 |
1310, 1550 |
980,1064 |
||
|
Operating Bandwidth (nm) |
±40 |
±20 |
±40 |
±20 |
||
|
Excess Loss (dB) |
≤0.7 |
≤0.8 |
≤1.0 |
≤1.2 |
||
|
Uniformity(only for 50/50) (dB) |
≤0.4 |
≤0.5 |
≤0.6 |
≤0.8 |
||
|
Tap Ratio (%) |
1±0.2%,2±0.4%,5±1%,10%,20%,30%,50% |
|||||
|
Extinction Ratio(dB) |
Type B (Both of axis working) |
≥20 |
≥20 |
≥18 |
≥18 |
|
|
Type F (Fast axis blocked) |
≥22 |
≥22 |
≥22 |
≥20 |
||
|
Return Loss (dB) |
≥50 |
|||||
|
Power Handling (mW) |
≤300 |
|||||
|
Fiber Type |
Tap port 2(only for 1×2) |
SMF-28e or HI 1060 or Panda fiber |
||||
|
Tap port 2&4(only for 2×2) |
SMF-28e or HI 1060 or Panda fiber |
|||||
|
Port 1 & 3 |
Panda fiber |
|||||
|
Operating Temperature (°C) |
-5~+70 |
|||||
|
Storage Temperature(°C) |
-40 ~ +80 |
|||||
|
Dimensions (mm) |
φ5.5 × L35 |
|||||

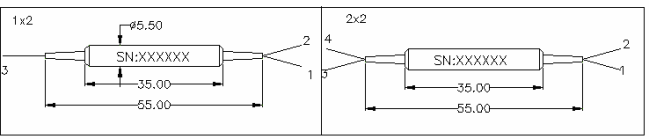

Dimensions:
Ordering Information
|
PMFC |
Type |
Wavelength |
Coupling Ratio |
Axis Alignment |
Pigtail Type |
Fiber Type For Port 2,4 |
Length |
Connector |
|
|
1×2 |
1064 |
1/99 |
F=Fast |
Axis |
250=250um |
1=SMF-28e |
0.8= |
NE=None |
|
|
2×2 |
1310 |
2/98 |
Blocked |
bare fiber |
4=HI1060 |
0.8m |
FA=FC/APC |
||
|
1550 |
3/97 |
B=Both |
Axis |
900=900um |
5=Panda |
FC=FC/UPC |
|||
|
…… |
Working |
loose tube |
fiber |
SA=SC/APC |
|||||
|
50/50 |
3000=3mm |
SC=SC/UPC |
|||||||
|
loose tube |
XX=Other |
||||||||
