PM Fiber Variable Optical Attenuator – 1064 nM – PMVOA
|
Features High precision & Wide attenuation range Low Insertion Loss & High PER High stability and reliability |
Applications Optical communication systems test Fiber component test Fiber Sensor |
Technical Paremeter
|
Parameter |
Value |
|||
|
Wavelength (nm) |
1310, 1550,1310/1550 |
1064 |
980 |
850 |
|
Bandwidth (nm) |
±40 |
±20 |
±10 |
±10 |
|
Attenuation Range (dB) |
0.6~40 |
0.8~40 |
0.8~40 |
1.0~40 |
|
Original Loss |
≤0.6 |
≤0.8 |
≤0.8 |
≤1.0 |
|
Extinction ratio (dB) |
≥20 |
|||
|
Return Loss (dB) |
≥50 |
|||
|
Fiber Type |
Panda Fiber |
|||
|
Adjustment Precision (dB) |
0.02 |
|||
|
Operating Temperature |
-5~ +70 |
|||
|
Storage Temperature |
-40 ~ + 85 |
|||
|
Dimension (LxMxH) (mm) |
26x18X8 |
|||

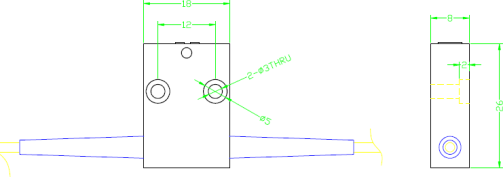

Dimensions:
Ordering Information
|
PMVOA |
Wavelength |
Adjustment Type |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
|
13=1310 |
1= Hand |
900=900um |
loose |
5=Panda |
0.8= |
NE=None |
|
|
15=1550 |
adjustment |
tube |
fiber |
0.8m |
FA=FC/APC |
||
|
1315=1310/1550 |
2000=2mm |
loose |
FC=FC/UPC |
||||
|
tube |
SA=SC/APC |
||||||
|
3000=3mm |
loose |
SC=SC/UPC |
|||||
|
tube |
XX=Other |
||||||
