PM Fiber Signal, Pump Combiner ( 2+1 ) x 1
|
Features Low Insertion Loss High Power Compact Size High Reliability |
Applications Fiber Laser Fiber Amplifier |
Technical Paremeter
|
Parameter |
Unit |
Value |
||
|
Signal Wavelength Range |
nm |
1064,1550 |
||
|
Pump Wavelength Range |
nm |
800-1000 |
||
|
Fiber Type |
Pump Fiber |
Signal Input fiber |
Signal Output fiber |
|
|
105/125 0.22 |
PM1550 |
PM 8/125 NA0.14/0.46 |
||
|
105/125 0.22 |
PM980 |
PM 6/125 NA0.14/0.46 |
||
|
105/125 0.22 |
PM 6/125 NA0.14/0.46 |
PM 6/125 NA0.14/0.46 |
||
|
105/125 0.22 |
PM 10/125 NA0.08/0.46 |
PM 10/125 NA0.08/0.46 |
||
|
105/125 0.22 |
PM 20/125 NA0.08/0.46 |
PM 20/125 NA0.08/0.46 |
||
|
Signal Insertion Loss |
dB |
≤0.5 |
||
|
Pump effiency |
% |
≥90 |
||
|
Extinction Ratio |
dB |
≥18 |
||
|
Each Input Power |
W |
15 |
||
|
Operating Temperature |
℃ |
0 ~ +75 |
||
|
Storage Temperature |
℃ |
-40 ~ +85 |
||
|
Package Dimensions |
mm |
8x12x70 |
||

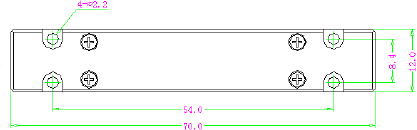

Dimensions:
Ordering Information
|
PMMPC |
Port |
Input pump fiber |
Input signal fiber |
Output signal fiber |
length |
Package |
|
(2+1)x1 |
105/125 NA0.15 105/125 NA0.22 |
PM980 S: Specify |
PM 6/125 DC S: Specify |
0.8=0.8m |
8x12x70 |
