PM Fiber Patchcord – 1064 nM – FC, SC, LC, UPC, APC
|
Features Low Insertion Loss High Extinction Ratio High stability and reliability |
Applications Fiber Laser Fiber Amplifier Testing Instrument Optic lab use |
Technical Paremeter
|
Parameter |
Value |
|||
|
Connector Type |
FC/UPC, SC/UPC,LC/UPC ,FC/APC, SC/APC, LC/APC |
|||
|
Wavelength (nm) |
1310,1480, 1550 |
980, 1064, |
850 |
|
|
Insertion Loss (dB) |
≤0.3 |
≤0.5 |
≤0.7 |
|
|
Return loss (dB) |
UPC Type |
≥50 |
||
|
APC type |
≥60 |
|||
|
Extinction Ratio (dB) |
≥23 |
≥23 |
≥23 |
|
|
Fiber Type |
PM1310,PM1550 |
PM980 |
PM850 |
|
|
Key Orientation |
Slow Axis |
|||
|
Axis Alignment (deg) |
±3 |
|||
|
Operating temperature (℃) |
-5~+70 |
|||
|
Storage temperature (℃) |
-40 ~ +80 |
|||

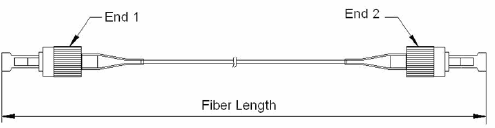

Dimensions:
Ordering Information
|
PMJP |
Connector End1 |
Connector End 2 |
Wavelength |
Pigtail Type |
Fiber Type |
Fiber Length |
|
NE=None |
NE=None |
850 |
250=250um bare fiber |
PM850 |
1=1m |
|
|
FA=FC/APC |
FA=FC/APC |
980 |
900=900um loose tube |
PM980 |
2=2m |
|
|
FC=FC/UPC |
FC=FC/UPC |
1064 |
2000=2mm loose tube |
PM1310 |
X=Other |
|
|
SA=SC/APC |
SA=SC/APC |
1310 |
3000=3mm loose tube |
PM1550 |
||
|
SC=SC/UPC |
SC=SC/UPC |
1550 |
||||
|
LC=LC/UPC |
LC=LC/UPC |
|||||
|
LA=LC/APC |
LA=LC/APC |
|||||
|
X=Other |
X=Other |
