Optical Switch 1X2 – 1064 nM
|
Features Low Insertion Loss High crosstalk Compact package |
Applications Optical Signal Routing Optical Network Protection /Restoration |
Technical Paremeter
|
Parameter |
Value |
|
Port Type |
1×1, 1×2 |
|
Wavelength (nm) |
1064 |
|
Insertion Loss (dB) |
≤0.7(Typ 0.5) |
|
Cross Talk (dB) |
≥50 |
|
Return Loss (dB) |
≥50 |
|
Repeatability (dB) |
≤±0.05 |
|
Switch Time (ms) |
10 |
|
Lifetime (cycle) |
>1,000,000 |
|
Switch mode |
Latching or Non-latching |
|
Operating Temperature (°C) |
-15 ~ +70 |
|
Storage Temperature (°C) |
-40 ~ +85 |
|
Drive Voltage (V) |
5 ±0.5 DC or 5V Pulse |
|
Work Current (mA) |
＜50 |
|
Fiber Type |
HI1060 |
|
Dimension (LxMxH) (mm) |
26.5×13.4×11 |
|
Optical Path |
Electrical Drive |
Status Sensor |
||||||
|
Pin1 |
Pin10 |
Pin5 |
Pin6 |
Pin2-3 |
Pin3-4 |
Pin7-8 |
Pin8-9 |
|
|
1-2 |
+V Pulse |
GND |
N/A |
N/A |
open |
close |
close |
open |
|
1-3 |
GND |
+V Pulse |
N/A |
N/A |
close |
open |
open |
close |

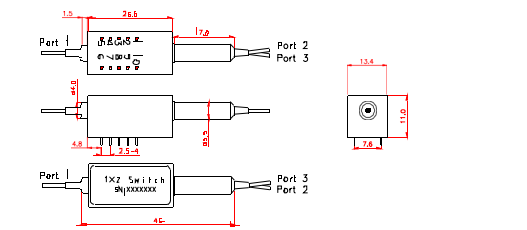

Dimensions:
Ordering Information
|
OSW |
Type |
Wavelength |
Mode |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
1×1 |
1064=1064n |
L=Latching |
250=250um |
4=HI1060 |
1= 1m |
NE=None |
|
|
1×2 |
m |
N=Non-Latc |
bare fiber |
FA=FC/APC |
|||
|
hing |
900=900um |
FC=FC/UPC |
|||||
|
loose tube |
SA=SC/APC |
||||||
|
SC=SC/UPC |
|||||||
|
XX=Other |
