Optical Isolator, Ultra Wideband, Polarization Insensitive C+L Band
|
Features Wide Operating Wavelength High Isolation & Low Insertion Loss& Low PDL Epoxy Free Optical Path |
Applications EDFA Transmitter WDM System Testing Instrument |
Technical Paremeter
|
Parameter |
C+L Band |
S+C+L band |
|
Operating Wavelength (nm) |
1530~1610 |
1460~1620 |
|
Peak Isolation (dB) |
58 |
58 |
|
Isolation (@23 (°C) (dB) |
≥35 |
≥32 |
|
Insertion Loss (@ 23 °C) (dB) |
≤0.5 |
≤0.6 |
|
Insertion Loss (@-5~+70 °C) (dB) |
≤0.8 |
≤0.9 |
|
PDL (dB) |
≤0.10 |
≤0.10 |
|
Return Loss (dB) |
≥50/50 |
|
|
Power Handling (mW) |
≤300 |
|
|
Fiber Type |
SMF-28e |
|
|
Operating Temperature (°C) |
-5 ~ +70 |
|
|
Storage Temperature (°C) |
-40 ~ +80 |
|
|
Dimensions (mm) |
φ5.5×L35 |
|

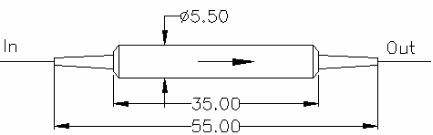

Dimensions:
Ordering Information
|
IS |
Wavelength |
Pigtail Type |
Fiber Type |
Length |
Connector |
Package size |
|
C+L |
250=250um |
1=SMF-28e |
1= 1m |
NE=None |
5.5×35 |
|
|
S+C+L |
bare fiber |
FA=FC/APC |
||||
|
900=900um |
FC=FC/UPC |
|||||
|
loose tube |
SA=SC/APC |
|||||
|
3000=3mm |
SC=SC/UPC |
|||||
|
loose tube |
LC=LC/UPC |
|||||
|
LA=LC/APC |
||||||
|
XX=Other |
