Optical Isolator, Polarization Insensitive – 850 nm
|
Features High isolation Low PDL & Insertion loss High stability and reliability |
Applications Fiber Amplifier Testing instruments |
Technical Paremeter
|
Parameter |
Value |
|
Center wavelength(nm) |
850 |
|
Bandwidth(nm) |
±10 |
|
Peak isolation (dB) |
30~32 |
|
Isolation at λc 23℃(dB) |
≥25 |
|
Typ.Insertion Loss at 23℃(dB) |
0.8 |
|
Insertion Loss at 23℃(dB) |
≤1.2 |
|
PDL (dB) |
≤0.15 |
|
Return loss (Input/output) (dB) |
≥50/50 |
|
Power handling (mW) |
500 |
|
Fiber Type |
HI780 |
|
Operating temperature (℃) |
0 ~ +50 |
|
Storage temperature (℃) |
-20 ~ +75 |
|
Package(mm) |
91.5x27x28 |

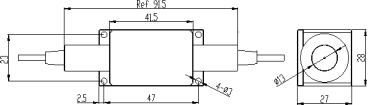

Dimensions:
Ordering Information
|
IS |
Wavelen gth |
Pigtail Type |
Fiber Type |
Length |
Connector |
Package size |
|
850 |
250=250um bare fiber |
7=HI780 |
0.8=0.8 |
NE=None |
91.5x27x |
|
|
900=900um loose tube |
1= 1m |
FA=FC/APC |
28 |
|||
|
3000=3mm loose tube |
FC=FC/UPC |
|||||
|
SA=SC/APC |
||||||
|
SC=SC/UPC |
||||||
|
LC=LC/UPC |
||||||
|
LA=LC/APC |
||||||
|
XX=Other |
