Optical Isolator Polarization Insensitive 1064nm, fiber length 0.8M
|
Features High Isolation Low Insertion Loss & Low PDL High Stability and Reliability |
Applications Fiber Laser |
Technical Paremeter
|
Parameter |
Unit |
Single Stage |
Dual Stage |
||
|
Grade |
P |
A |
P |
A |
|
|
Operating Wavelength |
nm |
1064 |
|||
|
Bandwidth |
nm |
±5 |
|||
|
Peak Isolation |
dB |
40 |
38 |
55 |
52 |
|
Isolation at 23°C |
dB |
≥30 |
≥28 |
≥45 |
≥42 |
|
Typ. Insertion Loss (λc,23 (°C) all sop) |
dB |
1.4 |
1.5 |
2.3 |
2.5 |
|
Insertion Loss (λc,-5 ~ +50 (°C) all sop) |
dB |
≤1.8 |
≤2.0 |
≤3.2 |
≤3.4 |
|
PDL at 23°C |
dB |
≤0.15 |
≤0.15 |
≤0.15 |
≤0.15 |
|
Return Loss |
dB |
≥55/50 |
≥55/50 |
≥55/50 |
≥55/50 |
|
Power Handling |
mW |
≤300 |
|||
|
Fiber Type |
HI 1060 |
||||
|
Operating Temperature |
°C |
-5~ +50 |
|||
|
Storage Temperature |
°C |
-40 ~ +80 |
|||
|
Dimensions |
mm |
φ5.5×L35 |
|||

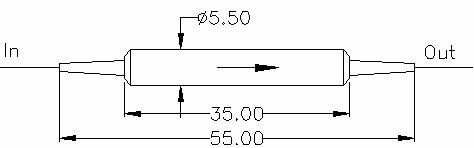

Dimensions:
Ordering Information
|
IS |
Type |
Grade |
Wavelen gth |
Pigtail Type |
Fiber Type |
Length |
Connector |
Package size |
|
S= Single stage D = Dual Stage |
P A |
1064 |
250=250um bare fiber 900=900um loose tube |
4=HI1060 |
0.8=0.8 1= 1m |
NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC LC=LC/UPC LA=LC/APC XX=Other |
5.5×35 |
