Optical Isolator, PM – Polarization Maintaining , 1310,1480,1550nm
Description
The PM Isolator is disigned to transmit positive light ,while blocking the reflected light from the terminal. The PM isolator is characterized with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. it´s the critical device of polarization maintaining fiber amplifers, fiber lasers, high speed communication systems and instrumentation applications, EDFA, PM Isolator has ´slow axis working,fast axis blocked´ and ´both axis woring´ can be selected
|
Features Low Insertion Loss Low Extinction Ratio & High Isolation High stability and reliability |
Applications EDFA Fiber Optical Instrument Fiber Sensor |
Technical Paremeter
|
Parameter |
Values |
||
|
Isolator Stage |
Single Stage |
Dual Stage |
|
|
Center Wavelength (nm) |
1310,1480,1550 |
||
|
Operating Wavelength Range (nm) |
±20 |
||
|
Typ. Insertion Loss (dB) |
0.45 |
0.55 |
|
|
Insertion Loss (dB) |
≤0.7 |
≤0.8 |
|
|
Typ. Isolation (dB) |
35 |
51 |
|
|
Isolation @23℃ (dB) |
≥20 |
≥40 |
|
|
Extinction Ratio (dB) (Only for PBS) |
≥20 |
≥20 |
|
|
Directivity (dB) |
≥50 |
||
|
Return Loss (dB) |
≥50 |
||
|
Power Handling (W) |
500 |
||
|
Fiber Type |
Port 1 & 2 |
PM Panda Fiber |
|
|
Port 3 |
SMF-28e or PM Panda Fiber |
||
|
Operating Temperature (°C) |
-5 ~ +70 |
||
|
Storage Temperature (°C) |
-40 ~ +80 |
||
|
Dimensions (mm) |
φ5.5 × L35(P1) |
||

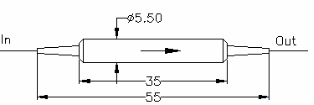

Dimensions:
Ordering Information
|
PMIS |
Type |
Grade |
Wavelength |
Axis Alignment |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
S= Single stage D = Dual Stage |
P A |
1310 1480 1550 |
F=Fast Axis Blocked B=Both Axis Working |
250=250um bare fiber 900=900um loose tube |
5=Panda fiber |
0.8= 0.8m |
NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC XX=Other |
