Optical Isolator High Power In Line 1064nM 3 watt
|
Features Low Insertion Loss & PDL High Isolation Extinction Ratio High stability and reliability |
Applications Fiber Laser High Power EDFA Fiber Optical Instrument |
Technical Paremeter
|
Parameter |
Non-PM Fiber Isolator (HPIS) |
PM Fiber Isolator (HPMIS) |
|
|
Center wavelength (nm) |
1030,1040,1064 |
||
|
Bandwidth (nm) |
±10 |
||
|
Peak isolation (dB) |
30~35 |
30~35 |
|
|
Isolation at 23℃(dB) |
≥ 25 |
≥ 25 |
|
|
Insertion Loss at 23℃ (dB) |
≤1.0(typ.0.6) |
≤1.0(typ.0.6) |
|
|
PDL (dB) |
≤0.15 |
||
|
Extinction Ratio (dB) |
— |
≥20 |
|
|
Return loss (Input/output) (dB) |
≥50/50 |
≥50/50 |
|
|
Power handling |
CW (W) |
1,2,3,5,10,15,20 or specify |
|
|
Pulse Peak (Kw) |
10 or specify |
||
|
Fiber Type |
HI1060 or LMA fiber |
PM980 or PM LMA fiber |
|
|
Operating temperature (℃) |
-5 ~ +50 |
||
|
Storage temperature (℃) |
-20 ~ +75 |
||
|
Package Dimension (mm) |
118x37x35 |
||

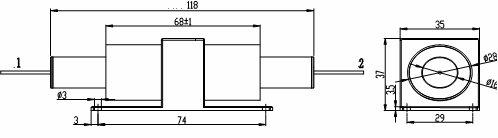

Dimensions:
Ordering Information
|
HPIS HPMIS |
Wavelength |
Working Axis |
Pigtail Type |
Fiber Type |
Length |
Power |
Package |
|
1030 |
F= Fast |
250=250um bare |
4=HI1060 |
0.8= 0.8m |
1=1W |
118x37x35 |
|
|
1040 |
axis |
fiber |
5=Panda |
2=2W |
|||
|
1064 |
blocked |
900=900um |
fiber |
X=Others |
|||
|
B= Slow |
loose tube |
||||||
|
axis |
3000=3mm loose |
||||||
|
working |
tube |
