Optical Collimator Single Fiber 1064nM
|
Features Low IL & High Return Loss Epoxy Free In Optical Path Environmental Stability |
Applications Isolator, Circulator, FWDM, CWDM etc |
Technical Paremeter
|
Parameter |
Value |
|
|
Operating wavelength(nm) |
1064 |
|
|
Bandwidth(nm) |
±30 |
|
|
Working Distance(mm) |
5 or specify |
|
|
Typ Insertion Loss (dB) |
0.25 |
|
|
Insertion Loss (dB) |
≤0.3 |
|
|
Return loss(dB) |
≥60 |
|
|
PDL (dB) |
≤0.02 |
|
|
Optical Power (mW) |
≤300 |
|
|
Fiber Type |
HI1060 |
|
|
Dimmension (mm) |
1.8(OD) Lens |
3.2×10 Metal holder or 2.78×9.0 Glass tube |
|
Operating Temperature(℃) |
-5 ~ +70 |
|
|
Storage Temperature(℃) |
-40~ + 85 |
|

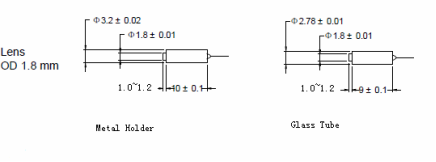

Dimensions:
Ordering Information
|
CL |
Type |
Wavelength |
Lens Diameter |
Lens Type |
Working Distance |
Pigtail Type |
Fiber Type |
Length |
Connector |
Packag e |
|
S=Single |
980 |
1.8mm |
C= C |
5=5mm, |
250=250um |
4= HI1060 |
1=1m |
NE=None |
3.2×10 |
|
|
fiber |
1064 |
lens |
X=Specif |
bare fiber |
X=Other |
X=Other |
FA=FC/APC |
2.78×9 |
||
|
G= G |
y |
900=900um |
FC=FC/UPC |
|||||||
|
lens |
loose tube |
SA=SC/APC |
||||||||
|
SC=SC/UPC |
||||||||||
|
LC=LC/UPC |
||||||||||
|
LA=LC/APC |
||||||||||
|
XX=Other |
