OLP Module
(Multi Channel Optical Switch)
Description
OLP-Optical Line Protection is a device that is used in the protection of network transmission line, it can realize optical power monitoring and automatic switching. In optical communication network, OLP constantly monitors optical power of working optical fiber and standby optical fiber. When the optical power value of working optical fiber is below the set switching threshold, the system raise the alarm prompt and switches to standby fiber automatically, which achieve line protection of optical transmission system.
GEZHI provides 3 types of line protection: 1:1 line protection, 1+1 line protection and 1-1 line protection . Wavelengths and connectors can be customized to meet special control and applications.
Features:
◆ Wide Wavelength Range
◆ Low Crosstalk
◆ High Stability, High Reliability
◆ Modularized Design
Technical Parameter
|
Parameters |
Unit |
OLP-1:1 |
OLP-1+1 |
OLP-1-1 |
|
Wavelength Range |
nm |
1260 ~ 1650 |
||
|
Test Wavelength |
nm |
1310 / 1550 |
||
|
Insertion Loss |
dB |
TX<1.2、RX<1.2 |
TX<4、RX<1.2 |
<1.2 |
|
Return Loss |
dB |
SM ≥ 45 |
||
|
Crosstalk |
dB |
SM ≥ 50 |
||
|
PDL |
dB |
≤ 0.20 |
||
|
WDL |
dB |
≤ 0.30 |
||
|
PD dark current |
nA |
＜1 |
||
|
PD responsivity |
mA/W |
24 ~ 40 |
||
|
PD report accuracy |
dB |
±0.5 (at -50 to 23 dBm) |
||
|
Operating voltage |
V |
4.5 ~ 5.5 |
||
|
Operating current |
mA |
80 ~ 120 |
||
|
Operating Temperature |
℃ |
-5 ~ +60 |
||
|
Storage Temperature |
℃ |
-30 ~ +80 |
||
|
Dimension |
mm |
120×80×18 |
||
OLP Module(Multi Channel Optical Switch) Working Theory

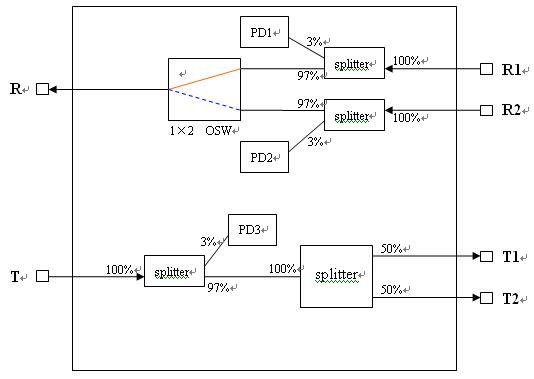

1:1

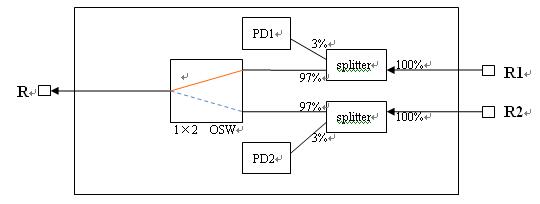

1+1

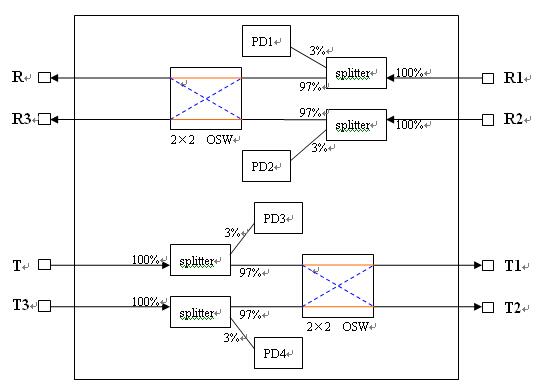

1-1
Dimension
Ordering Information
|
A |
B |
C |
D |
E |
F |
G |
|
Type |
Fiber Type |
Test Wavelength |
Tube Type |
Fiber Length |
Connector |
Dimension |
|
Optical Line Protection System Module X: Others |
SM: SM, 9/125 |
1310: 1310nm |
90:900um |
05: 0.5m±5cm |
OO:None |
01: 120×80×18(ABS) |
