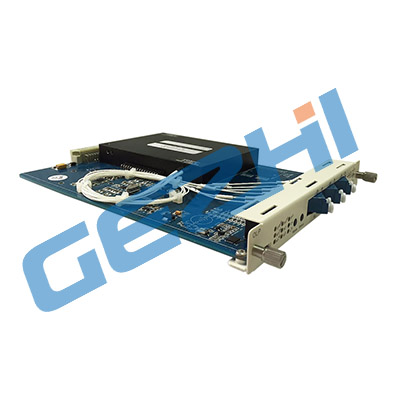

OLP Optical line protector
■Product overview
OLP-Optical Line Protection is a product that is used in the protection of network transmission line, the product can realize optical power monitoring and automatic switching. In optical communication network, OLP real-time monitoring optical power of working optical fiber and standby optical fiber. When the optical power value of working optical fiber is below the set switching threshold, the system raise the alarm prompt and switches to standby fiber automatically, which achieve line protection of optical transmission system.
■Product features
♦ Low insertion loss
♦ Business non-invasive switch
♦ Transparent transmission characteristics
♦ Reduce the loss caused by line fault
♦ Increase the reliability of the transmission network, improve network quality
♦ High level of integration by plug-in design, which saves space of cabinet
♦ Expansion is very convenient
■Performance Index
|
Parameter |
Unit |
1+1 Protection |
1:1 Protection |
|
Working Wavelength |
nm |
1310±50,1550±50 |
|
|
Monitor Optical Power Range |
dBm |
＋23～-50 |
|
|
Monitor Optical Power Tolerance |
dB |
±0.25 |
|
|
Optical Power Tolerance |
dB |
±0.01 |
|
|
Return Loss |
dB |
≥55 |
|
|
PDL |
dB |
≤0.05 |
|
|
WDL |
dB |
≤0.1 |
|
|
Return Loss |
dB |
Transmit<1.2, Receiver<0.8 |
Transmit<3.6, Receiver<0.8 |
|
Switch time |
ms |
<35 |
<15 |
|
Working time |
times |
>107 |
|
|
Power Consumption |
W |
＜3 |
|
■Product ordering information
|
Product code |
– |
Transmission mode |
Protection mode |
– |
Connector |
|
LP |
1：Simplex Unidirectional |
00：1-1 |
LP：LC/PC |
||
|
2：Duplex Bidirectional |
11：1:1 |
||||
|
3：Simplex Bidirectional |
12：1:1B |
||||
|
22：1＋1 |
