Octo 2×2 Bypass Optical Switches
Description
The LB Series Octo 2×2 Bypass Fiber optic switch integrated 4 dual 2×2 bypass switches in a single compact format. It is designed for 40G/100G transceiver bypass application. The device connects optical channels by redirecting incoming optical signals into selected output fibers. This is achieved using a patented opto-mechanical configuration and activated via an electrical control signal. Latching operation preserves the selected optical path after the drive signal has been removed. The switch has integrated electrical position sensors. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost. The switch is bidirectional.
|
Features Compact design, Miniature size Short switching time Bi-directionalLow optical distortions Low cross talk, Low Insertion Loss Wide operating wavelength Range |
Applications R&D in Laboratory System monitoring Metropolitan Area Network Network protection and restoration Instrumentation, testing, and measurement |
Technical Paremeter
|
Parameters |
Unit |
Specifications |
|
Operating Wavelength |
nm |
1260~1620(SM)、850(MM) |
|
Insertion Loss |
dB |
≤1.1 |
|
Wavelength Dependent Loss |
dB |
≤0.25 |
|
Polarization Dependent Loss |
dB |
≤0.05 |
|
Temperature Dependent Loss |
dB |
≤0.25 |
|
Return Loss |
dB |
SM≥50 MM≥30 |
|
Cross Talk |
dB |
SM≥55 MM≥50 |
|
Switch Time |
ms |
≤8 |
|
Repeatability |
dB |
≤±0.02 |
|
Durability |
times |
≥107 |
|
Operating Voltage |
V |
5 |
|
Switch Type |
Non-Latching/Latching |
|
|
Operating Temperature |
℃ |
－20~＋70 |
|
Storage Temperature |
℃ |
－40~＋85 |
|
Optical Power |
mW |
≤500 |
|
Dimension |
mm |
37.2L×21.5W×13.2H |

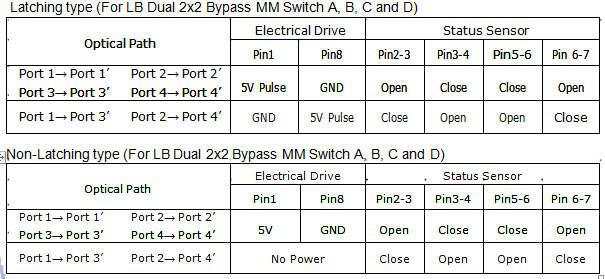

Pins

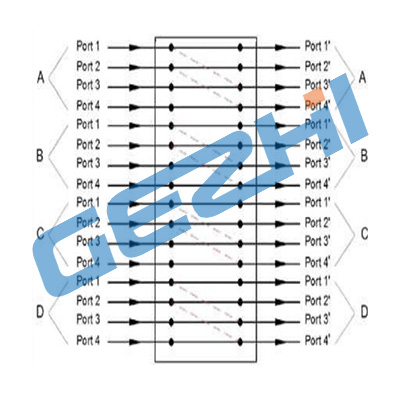

Optical Route

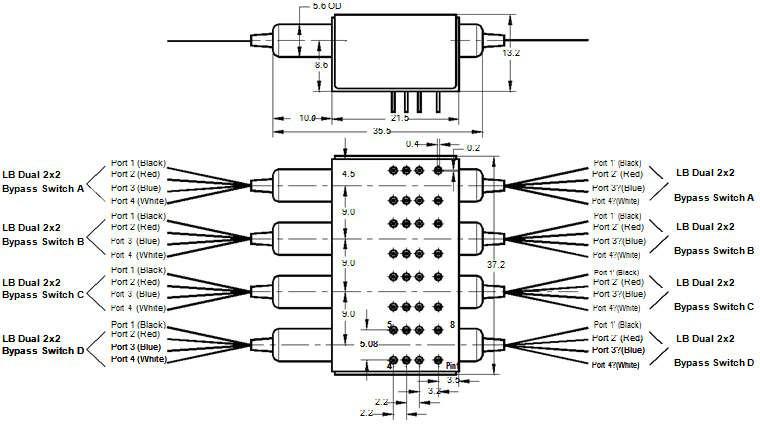

Demension:
Ordering Information
|
Mode |
Wavelength |
Voltage Type |
Control Model |
Fiber Type |
Fiber Diameter |
Fiber Length |
Connector |
|
S=SM M=MM |
85=850nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
