Multimode Optical circulator – 3 port – 1550 nM
|
Features High isolation & High Return Loss Low insertion loss & PDL Optical Path Epoxy Free |
Applications EDFA,DWDM and OTDR DWDM and OADM networks Bi-directional transmission system |
Technical Paremeter
|
Parameters |
3 Port |
|
Operating Wavelength(nm) |
1550 |
|
Bandwidth (nm) |
± 30 |
|
Insertion Loss (dB) |
≤ 1.20 |
|
PDL(dB) |
≤ 0.20 |
|
Isolation (dB) |
≥ 30 |
|
Directivity (dB) |
≥ 40 |
|
Return Loss (dB) |
≥ 40 |
|
Power Handling (mW) |
≤500 |
|
Fiber Type |
50/125 or 62.5/125 MM |
|
Operating Temperature(℃) |
-5-70 |
|
Storage Temperature(℃) |
-40-85 |
|
Dimension (mm) |
￠5.5×82 |

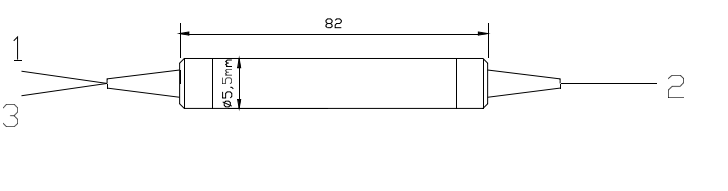

Dimensions:
Ordering Information
|
CIR |
Type |
Wavelength |
Pigtail Type |
Length |
Fiber Type |
Connector |
|
3=3 Port |
13=1310 |
250=250um bare fiber |
1= 1m |
2=50/125 MM |
NE=None |
|
|
15=1550 |
900=900um loose tube |
3=62.5/125 MM |
FC=FC/UPC |
|||
|
3000=3mm loose tube |
SC=SC/UPC |
|||||
|
FA=FC/APC |
||||||
|
SA=SC/APC |
||||||
|
ST=ST/UPC |
||||||
|
LC=LC/UPC |
||||||
|
xx=Others |
