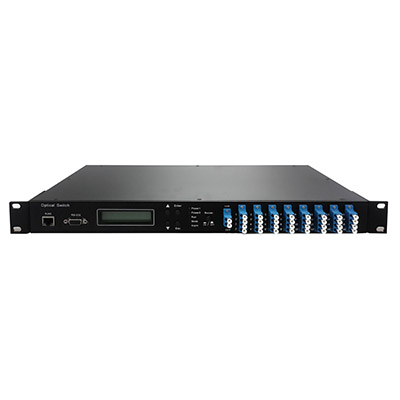

Multi-channel Optical Link Selector
Description
Optical Link selector is mainly used in multi-channel optical monitoring of optical transmission system, LAN multi-source/detector auto-exchange, optical sensing multi-point dynamic monitoring system, cable test of optical fiber, optical devices, networks and field projects in optical test system, optical device debugging and installation, monitoring multi-link network data security in data security,etc.
Features:
◆ Low insertion loss, fast switching
◆ Hot backup of double power supply, support hot-plugging.
◆ LED display panel. Visual display, convenient operation.
◆ Transparent transmission signal. High stability and reliability.
◆ Channel and time interval of automatic scanning can be set up.
◆ Support WEB、SNMP、TELNET、SSH, FTP log download,etc
Technical Parameter
|
Parameters |
Unit |
Indicators |
|
|
Channel No. |
16 to 2（D1×8） |
32 to 2（D1×16） |
|
|
Test Wavelength |
nm |
1310 / 1550 |
|
|
Insertion Loss |
dB |
Typ: £ 0.6dB， Max: £ 1.0 dB |
|
|
Repeatability |
dB |
≤ ±0.02 |
|
|
Return Loss |
dB |
≥ 45 |
|
|
Crosstalk |
dB |
≥ 70 |
|
|
WDL |
dB |
≤ 0.25 |
|
|
PDL |
dB |
≤ 0.1 |
|
|
Switching Time |
ms |
£ 10 ms（Sequence switch time of adjacent channel） |
|
|
Fiber Type |
SM（9/125um） |
||
|
Connector |
LC / PC |
||
|
Monitoring Port |
RJ45、RS-232 |
||
|
Working Power Supply（Plug-type） |
V |
AC:100 ～ 240（50/60Hz） or DC: 36 ～ 72 |
|
|
Power Consumption |
W |
＜ 10 |
|
|
Operating Temperature |
℃ |
-5 ～ 55 |
|

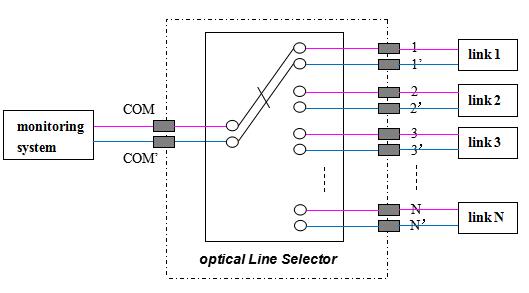

OBP Module(Multi Channel Optical Switch) Working Theory
Ordering Information
|
Channel No. |
Fiber Type |
Operating Wavelength |
Power Supply Mode |
Connector |
Chassis Size |
|
D1×8: 16 to 2 D1×16: 32 to 2 X:Others
|
SM:9/125 Single mode M6:62.5/125 multimode X: Others |
13/15: 1310/1550nm 850: 850nm X: Others |
AC: 100~240V DC: 36~72V AC/DC:100~240V&36~72V AC/AC: dual 100~240V
DC/DC:dual 36~72V X: Others |
LP: LC/PC X: Others |
1U:482.6×250×44mm 2U:482.6×303×89mm X: Others |
