MPO Patchcord – ( MTP patch cord )
|
Features Low Insertion Loss High Return Loss & High Repeatability |
Applications LAN, Data network CATV Network Telecommunication |
Technical Paremeter
|
Parameter |
Value |
||
|
Connector Type |
FC,SC, LC, etc |
||
|
Operating Wavelength (nm) |
980/1060 |
850 |
|
|
Fiber Type |
HI1060Flex or HI1060 or 10/125 SCF Or 20/125 SCF |
HI780 |
|
|
Insertion loss (dB) |
≤0.4 |
≤0.8 |
|
|
Return loss (dB) |
UPC |
≥50 |
≥50 |
|
APC |
≥60 |
≥60 |
|
|
Durability |
≥1000 |
||
|
Operating temperature (℃) |
-40 ~ + 85 |
||

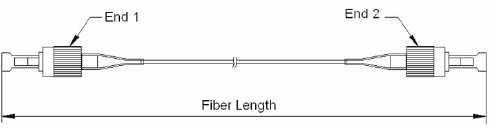

Dimensions:
Ordering Information
|
JP |
Connector (End 1) |
Connector (End2) |
Wavelengt h |
Pigtail Type |
Fiber Type |
Length |
|
NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC LC=LC/UPC LA=LC/APC |
NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC LC=LC/UPC LA=LC/APC |
850 980 1064 |
250=250um bare fiber 900=900um loose tube 2000=2mm loose tube 3000=3mm loose tube |
4=HI1060Flex 7=HI780 Fiber 8=HI1060 9=10/125 SCF 10=20/125 SCF |
1=1m X=Specify |
