Mini Optical Collimator RC80
|
Features Low Insertion Loss Compact Size Environmental Stability |
Applications Fiber sensor |
Technical Paremeter
|
Parameter |
Value |
|
|
Operating wavelength (nm) |
1550, |
|
|
Bandwidth (nm) |
±30 |
|
|
Working Distance (mm) |
5 or specify |
|
|
Insertion Loss (dB) |
≤0.70 |
|
|
Return loss(dB) |
≥55 |
|
|
PDL(dB) |
≤0.02 |
|
|
Optical Power(mW) |
≤500 |
|
|
Fiber Type |
RC80,SM1550 |
|
|
Dimension(mm) |
1.0(OD) |
1.8×7 (Metal holder) |
|
Operating Temperature(℃) |
-5 ~ +70 |
|
|
Storage Temperature () |
-40~ + 85 |
|

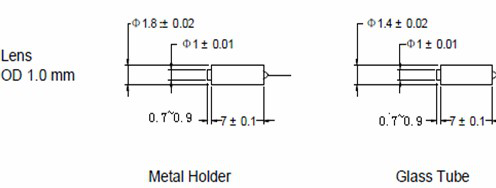

Dimensions:
Ordering Information
|
CL |
Configuration |
Wavelengt h |
Lens Diameter |
Working distance |
Pigtail |
Fiber |
Length |
Package |
|
S=Single fiber |
1550 |
1.=1.0mm |
5=5mm 10=10mm S=Specify |
165=165um bare fiber |
6=RC80, SM1550 |
0.8=0.8 1=1m S=Specify |
1.8×7 1.4×7 |
