Mini 1×1 1×2 2x2Bypass Optical Switch
Description
The LB Series miniature fiber optic switch connects optical channels by redirecting incoming optical signals into selected output fibers, in 1×1, 1×2 and 2×2 (bypass) configurations. This is achieved using opto-mechanical configuration and activated via an electrical control signal. Latching operation preserves the selected optical path after the drive signal has been removed. The switch has integrated status contacts to provide an electrical readout of switch position. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost. It is designed for use in reconfigurable OADM, optical cross-connect system and network switching for fault protection applications. Electronic driver is available for this series of switches. The switch is bidirectional.
|
Features Compact design, Miniature size Short switching time Bi-directionalLow optical distortions Low cross talk, Low Insertion Loss Wide operating wavelength Range |
Applications R&D in Laboratory System monitoring Metropolitan Area Network Network protection and restoration Instrumentation, testing, and measurement |
Technical Paremeter
|
Parameters |
MINI-1X1 1X2 2×2Bypass |
|||
|
Wavelength Range |
nm |
650～1310 |
1260～1670 |
|
|
Testing Wavelength |
nm |
650/780/850/980/1064/1310 |
1310/1490/1550/1625/1650 |
|
|
Insertion Loss |
1X1 |
dB |
Typ:0.6,Max:1.0 |
Typ:0.5 ,Max:0.8 |
|
1X2 |
Typ:0.6,Max:1.0 |
Typ:0.6,Max:1.0 |
||
|
2X2B |
Typ:0.8,Max:1.2 |
Typ:0.8,Max:1.0 |
||
|
Return Loss |
dB |
≥30 |
≥50 |
|
|
Crosstalk |
dB |
≥35 |
≥50 |
|
|
PDL |
dB |
≤0.05 |
||
|
WDL |
dB |
≤0.25 |
||
|
TDL |
dB |
≤0.25 |
||
|
Repeatability |
dB |
≤±0.02 |
||
|
Power supply |
v |
3.3 or 5.0 |
||
|
Lifetime |
Cycle |
≥107 |
||
|
Switch Time |
ms |
≤8 |
||
|
Transmission Power |
mW |
≤500 |
||
|
Operation Temperature |
℃ |
-30～+85 |
||
|
Storage Temperature |
℃ |
-40～+85 |
||
|
Weight |
g |
16 |
||
|
Dimension |
mm |
(L)20.5×(W)10×(H)8(±0.2) |
||
Pins
Latching Type
LB Ultra-Mini 1×2 Switch
|
Electrical Drive |
Status Sensor |
|||||
|
Optical Path |
Pin 1 |
Pin 8 |
Pin 2-3 |
Pin 3-4 |
Pin 5-6 |
Pin 6-7 |
|
Port 1 → Port 2 |
5V Pulse |
GND |
Open |
Close |
Close |
Open |
|
Port 1 → Port 3 |
GND |
5V Pulse |
Close |
Open |
Open |
Close |
LB Ultra-Mini 2×2 Bypass Switch
|
Electrical Drive |
Status Sensor |
|||||
|
Optical Path |
Pin 1 |
Pin 8 |
Pin 2-3 |
Pin 3-4 |
Pin 5-6 |
Pin 6-7 |
|
Port 1 → Port 2 |
5V Pulse |
GND |
Open |
Close |
Close |
Open |
|
Port 4 → Port 3 |
||||||
|
Port 1 → Port 3 |
GND |
5V Pulse |
Close |
Open |
Open |
Close |
Non-Latching Type
LB Ultra-Mini 1×2 Switch
|
Electrical Drive |
Status Sensor |
|||||
|
Optical Path |
Pin1 |
Pin8 |
Pin2-3 |
Pin3-4 |
Pin5-6 |
Pin 6-7 |
|
Port 1 → Port 2 |
5V |
GND |
Open |
Close |
Close |
Open |
|
Port 1 → Port 3 |
No Power |
Close |
Open |
Open |
Close |
|
LB Ultra-Mini 2×2 Bypass Switch
|
Electrical Drive |
Status Sensor |
|||||
|
Optical Path |
Pin1 |
Pin8 |
Pin2-3 |
Pin3-4 |
Pin5-6 |
Pin 6-7 |
|
Port 1 → Port 2 |
5V |
GND |
Open |
Close |
Close |
Open |
|
Port 4 → Port 3 |
||||||
|
Port 1 → Port 3 |
No Power |
Close |
Open |
Open |
Close |
|

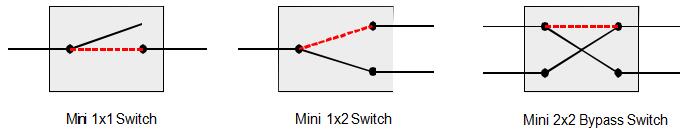

Optical Route

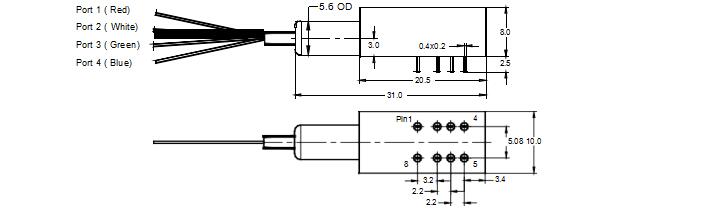

Demension:
Ordering Information
|
Mode |
Wavelength |
Voltage |
Control Model |
Fiber Type |
Fiber Diameter |
Fiber Length |
Connector |
|
S=SM M=MM |
85=850nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
