Magneto Optical Switch Single Stage 1X2
Description
Magneto fiber optic switch has been widely researched due to its capabilities handling large beam cross sections, operating at low voltages, featured as low insertion loss and intrinsic non-reciprocity.
A magneto optic switch, comprising: a plurality of optical components positioned in order along a light path comprising: a single fiber optical collimator, a first birefringent optic crystal, a first half wave plate assembly, a polarization rotation assembly, a second half wave plate assembly, a second birefringent optic crystal, and a dual fiber optic collimator.
Features
♦ High switching speed
♦ Better durability
♦ High reliability
♦ Low voltage drive
♦ Fail-safe latching
Applications
♦ Optical channel blocking
♦ Configurable Add/Drop
♦ System monitoring,Test&measurement
♦ Fiber-optics sensing system
Technical Paremeter
|
Parameters |
Unit |
1x2 |
|
Wavelength Range |
nm |
1520~1580 |
|
Test Wavelength |
nm |
1550 |
|
Insertion Loss |
dB |
1.0 |
|
Return Loss |
dB |
≥50 |
|
Crosstalk |
dB |
≥20 |
|
PDL |
dB |
≤0.2 |
|
Repeatability |
dB |
≤±0.01 |
|
Operating Voltage |
V |
2.5 |
|
Durability |
Cycles |
≥ 30 Bllions |
|
Switching Time |
μs |
≤100 |
|
Switching Type |
n/a |
Latching |
|
Optical Power |
mW |
≤500 |
|
Operating Temperature |
℃ |
–5~ +70 |
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
Relative Humidity |
% |
5 ~ 95 |
|
Fiber Type |
G657A1 |
|
|
Dimension |
mm |
(L )29x(W)7.3x(H)6 |
Pins
|
Type |
State |
Optical Route |
Electric Drive |
|
|
Pin 1 |
Pin2 |
|||
|
Bidirectional |
A |
P1→P2 |
GND |
V+ |
|
B |
P1→P3 |
V+ |
GND |
|
|
Type |
State |
Optical Route |
Electric Drive |
|
|
Pin 1 |
Pin2 |
|||
|
Unidirectional （1X2） |
A |
P1→P2 |
GND |
V+ |
|
B |
P1→P3 |
V+ |
GND |
|
|
Unidirectional （2X1） |
A |
P2→P1 |
V+ |
GND |
|
B |
P3→P1 |
GND |
V+ |
|

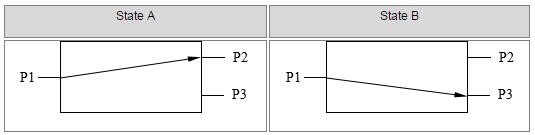

Magneto Optical Switch Single Stage 1X2 – Optical Route
Bidirectional
Unidirectional 1×2
Unidirectional 1×2
Electric
|
Parameter |
Unit |
|
|
Drive Voltage |
V |
2.5±10% |
|
Drive Current |
mA |
160±30% |
|
Pulse Duration |
μs |
200~400 |
|
Claim Frequency |
Hz |
<800 |
Ordering Information
|
Type |
Fiber Type |
Operating Voltage |
Test Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
|
1X2B/Ⅰ: Bidirectional 1X2U/Ⅰ: Unidirectional （1X2） 2X1U/Ⅰ: Unidirectional （2X1） |
SM: SM, 9/125 X: Others
|
2.5: 2.5V
|
1550: 1550nm X: Others |
25: 250um 90: 900um X: Others
|
05: 0.5m±5cm 10: 1.0m±5cm 15: 1.5m±5cm X: Others |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC LP: LC/PC LA: LC/APC X: Others |
