High Power Optical Isolator Collimated Beam Output 30W non-PM fiber
|
Features Low Insertion Loss & PDL High Isolation Extinction Ratio High stability and reliability |
Applications Fiber Laser |
Technical Paremeter
|
Parameters |
Non-PM fiber (HPCI) |
PM fiber (HPMCI) |
|
Center Wavelength (λc) (nm) |
1064 |
|
|
Operating Wavelength Range(nm) |
±10 |
|
|
Peak Isolation (dB) |
30~35dB |
|
|
Isolation at 23℃ (dB) |
≥25dB |
|
|
Transmission (%) |
≥90 (Typ. 93%) |
|
|
Return Loss (dB) |
≥50 |
|
|
PDL (dB) |
<0.15 |
— |
|
Extinction Ratio (dB) |
— |
≥20dB |
|
Fiber Type |
20/125, 25/250 DC LMA fiber |
PM20/125, PM25/250 DC LMA fiber |
|
Nominal Output Beam Diameter (mm) |
8mm or Specify |
|
|
Optical Power |
Average 10,20,30W or Specify Peak Power 10Kw, 20Kw |
|
|
Operating Temperature(℃) |
-0 to +50 |
|
|
Storage Temperature(℃) |
-20 to +75 |
|

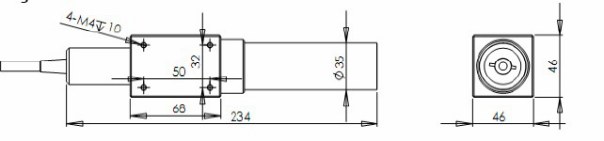

Dimensions:
Ordering Information
|
HPCI HPMCI |
Wavelength |
Working axis |
Output beam diameter |
Input Pigtail |
Fiber |
Input length |
Power |
|
1064 |
F=Fast axis |
8=8mm |
3=3mm loose tube |
10/125DC |
2=2m |
20W |
|
|
Blocked |
S=Specify |
3AC=3mm Armored |
20/125DC |
S=Specify |
30W |
||
|
Cable |
S=Specifiy |
S=Specify |
|||||
|
6AC=6mm Armored |
|||||||
|
Cable |
