High Power Optical Circulator – non PM fiber
|
Features Low Insertion Loss & PDL High Isolation & High ER |
Applications EDFA Fiber Optical Instrument Fibe Laser |
Technical Paremeter
|
Type Parameter |
Non-PM fiber(HPCIR) |
PM fiber (HPMCIR) |
|
Port Number |
3 Port |
|
|
Operating wavelength (nm) |
1030, 1064 |
|
|
Isolation (dB) |
≥22 |
≥22 |
|
Insertion Loss (dB) |
≤1.5 (Typ 1.2) |
≤1.5 (Typ 1.2) |
|
Extinction Ratio (dB) |
— |
≥20 |
|
PDL(dB) |
≤0.2 |
— |
|
Cross Talk (dB) |
≥50 |
≥50 |
|
Return loss (dB) |
≥50 |
≥50 |
|
Fiber Type |
HI1060 |
PM 980 |
|
Power handling (CW) (W) |
0.5,1,2,3,10W |
|
|
Fiber Length (m) |
0.80 |
|
|
Operating temperature (℃) |
0 ~ +60 |
|
|
Storage temperature (℃) |
-20 ~ +70 |
|
|
Dimensions (mm) |
110x37x35 |
|

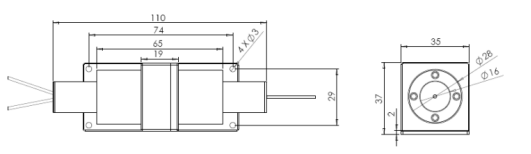

Dimensions:
Ordering Information
|
HPCIR HPMCIR |
Port |
Wavelength |
Pigtail Type |
Fiber Type |
Length |
Power |
|
|
3=3 |
1030 |
250=250um |
bare |
4=HI1060 |
0.8= 0.8m |
500mW |
|
|
Port |
1064 |
fiber |
5=Panda |
1W |
|||
|
900=900um |
loose |
fiber |
|||||
|
tube |
|||||||
|
3000=3mm |
loose |
||||||
|
tube |
|||||||
