Fused Type PM WDM Coupler 980 ,1064 nm
|
Features Low Insertion Loss High Isolation & High ER High stability and reliability |
Applications Amplifier Fiber laser |
Technical Paremeter
|
Type Parameter |
980/1064 |
|
|
Operating wavelength (nm) |
980 and 1064 |
|
|
Operating bandwidth (nm) |
±5 |
|
|
Insertion loss (dB) |
Pump Port |
≤0.5 |
|
Signal Port |
≤0.7 |
|
|
Isolation (dB) |
≥13 |
|
|
Extinction Ratio(dB) |
≥18 |
|
|
Directivity (dB) |
≥55 |
|
|
Operating temperature (℃) |
-40 ~ +85 |
|
|
Configuration |
1×2 or 2×2 |
||
|
Fiber length |
0.8m, others on request |
||
|
Fiber Type |
Fujikura SM98-PR-U25A-H |
||
|
Pigtail type |
250μm bare fiber |
900μm loose tube |
900μm/2mm/3mm loose tube |
|
Dimensions(mm) |
φ3.0×76 |
φ3.0×92 |
100x18x7.5 |

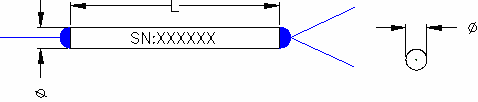

Dimensions:
Ordering Information
|
PMWDM |
Wavelength |
Port |
Pigtail Type |
Fiber Type |
Length |
Connector |
Package |
|
980/1064 |
1×2 2×2 |
250=250um bare fiber 900=900um loose tube 3000=3mm loose tube |
5=Panda fiber |
0.8= 0.8m X:other |
NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC LC=LC/UPC XX=Other |
3×76 |
