Filter Multi-Mode Splitter – FMMS 1310nM 1×2
|
Features Low Insertion Loss Difference Coupling Ratio High Stability and reliability |
Applications
Multi-mode fiber communication systems LAN |
Technical Paremeter
|
Type Parameter |
850/1310 |
|
|
Operating wavelength (nm) |
850 or 1310 |
|
|
Operating bandwidth (nm) |
±50 |
|
|
Insertion Loss(dB) |
50/50% |
≤3.9/3.9 |
|
10/90% |
≤11.3/1.1 |
|
|
5/95% |
≤14.5/0.9 |
|
|
Directivity (dB) |
≥38 |
|
|
PDL (dB) |
≤0.1 |
|
|
Wavelength thermal stability (nm/℃) |
≤0.003 |
|
|
Insertion loss thermal stability(dB/℃) |
≤0.005 |
|
|
Power handling (mW) |
≤500 |
|
|
Operating temperature (℃) |
0 ~ +70 |
|
|
Storage temperature (℃) |
-40 ~ +85 |
|
|
Fiber type |
50/125 or 62.5/125um |
|
|
Dimensions (mm) |
φ5.5×L35 |
|

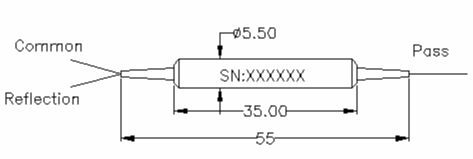

Dimensions:
Ordering Information
|
FMMS |
Port Type |
Wavelength |
Coupling Ratio |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
1×2 |
850 |
50/50% |
250=250um |
2=50/125 |
1= 1m |
NE=None |
|
|
1310 |
10/90% |
bare fiber |
3=62.5/125 |
FA=FC/APC |
|||
|
850/1310 |
5/95% |
900=900um |
FC=FC/UPC |
||||
|
1/99% |
loose tube |
SA=SC/APC |
|||||
|
3000=3mm |
SC=SC/UPC |
||||||
|
loose tube |
LC=LC/UPC |
||||||
|
LA=LC/APC |
|||||||
|
XX=Others |
