Fiber Pigtail – Singlemode
|
Features High Reliability Accurate polishing angle |
Applications Collimator Fiber sensor Testing Equipment |
Technical Paremeter
|
Parameter |
Value |
|
AR Coating |
1310, 1550, 1310/1550, 980/1550, 980/1064 or Other |
|
Bandwidth (nm) |
±40 |
|
Angle Polish |
0°, 8°, or any other degree |
|
Capillary Diameter(mm) |
1.0±0.005 or 1.8±0.005 |
|
Scratch/Dig |
10/5 |
|
AR Coating |
R<0.25%@ specified wavelength range |
|
Dimension |
1.8(OD): 5~6.5(L); 1.0(OD):5~5.5(L) |
|
Fiber Type |
250um bare fiber |

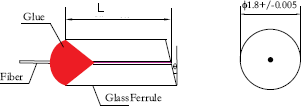

Dimensions:
Ordering Information
|
PIGT |
Configuration |
AR Coating |
Angle Polish |
Pigtail |
Fiber |
Length |
|
S=Single fiber |
850 |
0=0° |
0=250um bare fiber |
0=SMF-28e |
1m |
|
|
D=Dual Fiber |
980/1064 |
0=8° |
1=HI1060 |
S=Specif y |
||
|
1310/1550 |
