Fiber Patchcords – 2000 nm LC,UPC PM Polarization Maintaining
|
Features Low Insertion Loss High Extinction Ratio High stability and reliability |
Applications Fiber Laser Fiber Amplifier Testing Instrument Optic lab use |
Technical Paremeter
|
Parameter |
Value |
|
|
Connector Type |
FC/UPC, SC/UPC,LC/UPC ,FC/APC, SC/APC, LC/APC |
|
|
Wavelength (nm) |
2000 |
|
|
Insertion Loss (dB) |
UPC Type |
≤0.3 |
|
APC type |
≤0.4 |
|
|
Return loss (dB) |
UPC Type |
≥50 |
|
APC type |
≥60 |
|
|
Extinction Ratio (dB) |
≥23 |
|
|
Fiber Type |
PM1550 or Nufern PM1950 fiber |
|
|
Key Orientation |
Slow Axis |
|
|
Axis Alignment (deg) |
±3 |
|
|
Operating temperature (℃) |
-5~+70 |
|
|
Storage temperature (℃) |
-40 ~ +80 |
|

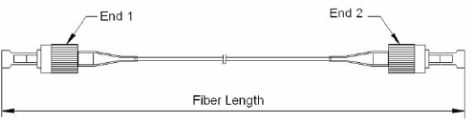

Dimensions:
Ordering Information
|
PMJP |
Connector End1 |
Connector End 2 |
Wavelength |
Pigtail Type |
Fiber Type |
Fiber Length |
|
NE=None |
NE=None |
2000=2000 |
250=250um bare fiber |
5=PM1550 9=Nufern PM1950 fiber |
1=1m |
|
|
FA=FC/APC |
FA=FC/APC |
900=900um loose tube |
2=2m |
|||
|
FC=FC/UPC |
FC=FC/UPC |
2000=2mm loose tube |
X=Other |
|||
|
SA=SC/APC |
SA=SC/APC |
3000=3mm loose tube |
||||
|
SC=SC/UPC |
SC=SC/UPC |
|||||
|
LC=LC/UPC |
LC=LC/UPC |
|||||
|
LA=LC/APC |
LA=LC/APC |
|||||
|
X=Other |
X=Other |
