Faraday Mirror – Standard size – 1550nM
|
Features Low Insertion Loss Compact Size Environmental Stability |
Applications EDFA DWDM System Fiber Instruments Fiber Sensor |
Technical Paremeter
|
Parameter |
Value |
|
|
Operating wavelength (nm) |
1310 or 1550 |
1064 |
|
Operating bandwidth (nm) |
±15 |
±5 |
|
Insertion loss (dB) |
≤0.6 |
≤3.0 |
|
Faraday Rotation Angle(single pass) (℃) |
45 |
|
|
Maximum Rotation angle tolerance over wavelength range at 23℃) (℃) |
±3 |
|
|
PDL (dB) |
≤0.05 |
|
|
PMD (ps) |
≤0.05 |
|
|
Power handling (mW) |
≤500 |
≤150 |
|
Fiber Type |
SMF-28e |
HI1060 |
|
Operating temperature(℃) |
-5 ~ +70 |
|
|
Storage temperature(℃) |
-40~ +85 |
|
|
Package dimensions(mm) |
Ф5.5×L35 |
|

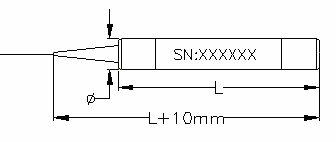

Dimensions:
Ordering Information
|
FM |
Wavelength |
Pigtail Type |
Fiber Type |
Length |
Connector |
Size |
||
|
1064 |
250= |
250um |
bare |
1=SMF-28e |
1= 1m |
NE=None |
Ф5.5×35 |
|
|
1310 |
fiber |
4=HI1060 |
FA=FC/APC |
|||||
|
1550 |
900= |
900um |
loose |
FC=FC/UPC |
||||
|
tube |
SA=SC/APC |
|||||||
|
SC=SC/UPC |
||||||||
|
ST=ST/UPC |
||||||||
|
LC=LC/UPC |
||||||||
|
XX=Other |
||||||||
