Faraday mirror – Compact size – 1310nM
|
Features Low Insertion Loss Compact Size Environmental Stability |
Applications EDFA DWDM System Fiber Instruments Fiber Sensor |
Technical Paremeter
|
Parameter |
Value |
|
Operating wavelength (nm) |
1310 or 1550 |
|
Operating bandwidth (nm) |
±15 |
|
Insertion loss (dB) |
≤0.6 |
|
Faraday Rotation Angle(single pass) (℃) |
45 |
|
Maximum Rotation angle tolerance over wavelength range at 23℃) (℃) |
±3 |
|
PDL (dB) |
≤0.05 |
|
PMD (ps) |
≤0.05 |
|
Power handling (mW) |
≤500 |
|
Fiber Type |
SMF-28e |
|
Operating temperature(℃) |
-5 ~ +70 |
|
Storage temperature(℃) |
-40~ +85 |
|
Package dimensions(mm) |
Ф3.2×L12 |

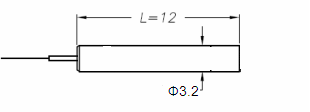

Dimensions:
Ordering Information
|
FM |
Wavelength |
Pigtail Type |
Fiber Type |
Length |
Connector |
Size |
||
|
1310 |
250= |
250um |
bare |
1=SMF-28e |
1= 1m |
NE=None |
Ф3×12 |
|
|
1550 |
fiber |
FA=FC/APC |
||||||
|
900= |
900um |
loose |
FC=FC/UPC |
|||||
|
tube |
SA=SC/APC |
|||||||
|
SC=SC/UPC |
||||||||
|
ST=ST/UPC |
||||||||
|
LC=LC/UPC |
||||||||
|
XX=Other |
||||||||
