4×4 Optical Switches



Description

GEZHI Photonics’ 4×4 Mechanical Fiber Optic Switch (4×4 Optical Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.

Features

Compact design, Miniature size

Short switching time

Bi-directionalLow optical distortions

Low cross talk, Low Insertion Loss

Wide operating wavelength Range

Applications

R&D in Laboratory

System monitoring

Metropolitan Area Network

Network protection and restoration

Instrumentation, testing, and measurement

Technical Paremeter

Parameters

GZ-FSW-4×4

Operating Wavelength

nm

1260~1620(SM)、850(MM)

Insertion Loss

dB

≤1.0

Wavelength Dependent Loss

dB

≤0.40

Polarization Dependent Loss

dB

≤0.05

Temperature Dependent Loss

dB

≤0.20

Return Loss

dB

SM≥50 MM≥30

Cross Talk

dB

SM≥55 MM≥35

Switch Time

ms

≤8

Repeatability

dB

≤±0.02

Durability

times

≥107

Operating Voltage

V

3 or 5

Switch Type

Non-Latching/Latching

Operating Temperature

-20~+70

Storage Temperature

-40~+85

Optical Power

mW

≤500

Dimension

mm

52.7.0L×37.2W×10.0H


Pins

4x4 optical switch pin.jpg

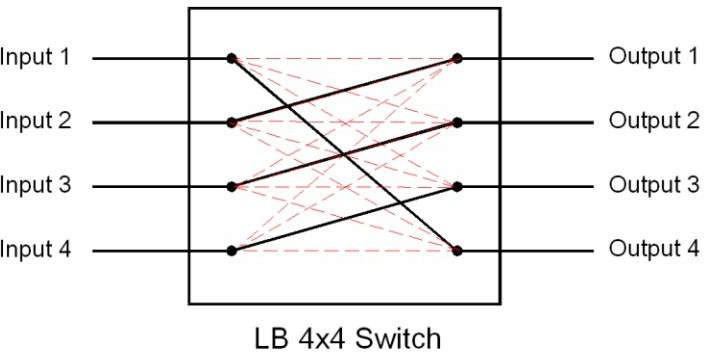

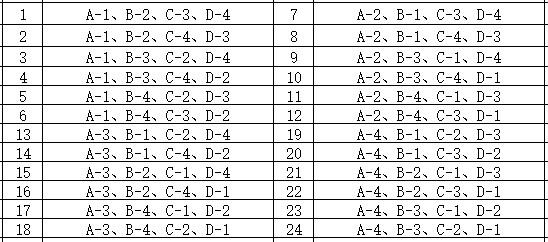

Optical Route

4x4 optical switch route.jpg

Demension:

4x4 optical switch size.jpg

Ordering Information

Mode

Wavelength

Voltage Type

Control Model

Fiber Type

Fiber Diameter

Fiber Length

Connector

S=SM

M=MM

85=850nm

13/15=1310/1550nm

X=Others

3=3V

5=5V

L=Latching

N=Non- Latching

5=50/125

6=62.5/125

9=9/125

X=Others

25=250um

90=900um

20=2.0mm

30=3.0mm

X=Others

1=1m

2=1.5m

X=Others

0=None

1=FC/PC

2=FC/APC

3=SC/PC

4=SC/APC

5=ST/PC

6=ST/APC

7=LC/PC

8=LC/APC

X=Others
