3 Port Polarization Maintaining Optical Circulator
Description
The Polarization Maintaining Optical Circulator (PM Optical Circulator) (fast axis blocked) is a compact lightwave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3, while blocking the reflected light. The component provides high isolation, low insertion loss, high extinction ratio, and excellent environment stability.
|
Features Low Insertion Loss High stability and reliability |
Applications EDFA Fiber Optical Instrument Fiber Sensor |
Technical Paremeter
|
Type Parameter |
Type A |
Type B |
Type B |
|
Operating wavelength (nm) |
1310 or 1550 |
1064 or 1065 |
|
|
Bandwidth (nm) |
±30 |
±20 |
±5 |
|
Typ. Isolation (dB)(port 2->1& por 3->2) |
46 |
30 |
30 |
|
Isolation (dB) (port 2->1& por 3->2) |
≥40 |
≥20 |
≥25 |
|
Typ. Insertion Loss (dB) (port 1->2& por 2->3) |
0.7 |
0.6 |
1.8 |
|
Insertion Loss (dB) (port1->2& por 2->3) @,-5 to +70（1310/1550nm）， ,-5 to +50（1064nm） |
≤0.9 |
≤0.8 |
≤2.1 |
|
Extinction Ratio (dB) |
≥22 |
≥20 |
≥20 |
|
Cross Talk (dB) |
≥50 |
||
|
Return loss (dB) |
≥50 |
||
|
Power handling (mW) |
≤300 |
||
|
Fiber Type |
1310nm :PM 1310 Panda Fiber;1550nm:PM1550 Panda Fiber; 1064nm:PM980 panda Fiber. |
||
|
Ports Marking color(only for 250um bare fiber) |
Port1 :Black ,Other ports :Clear |
||
|
Ports labeling(only for devices with 900um loose tube ) |
900um Red loose tube for all ports; Marking:port1:Black |
||
|
Operating temperature (℃) |
-5 ~ +70（1310/1550nm） ， -5 ~ +50（1064nm） |
||
|
Storage temperature (℃) |
-40 ~ +85 |
||
|
Dimensions (mm) |
φ5.5×L35(P1) |
||

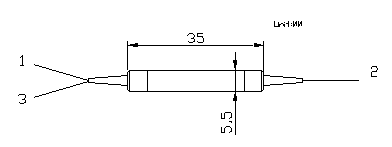

Dimension
Ordering Information
|
Wavelength |
Ports |
Type |
Axis Alignment |
Package |
Pigtail Type |
Length |
Connector |
|
|
PMCIR |
1064=1064nm |
3=3 Ports |
A=A Type |
F=Fast Axis Blocked |
1=P1 |
1=250um bare fiber |
H=0.5m |
0=None |
|
1310=1310nm |
B=B Type |
2=900um loose tube |
8=0.8m |
1=FC/UPC |
||||
|
1550=1550nm |
1=1.0m |
2=FC/APC |
||||||
|
1065=1065nm |
2=2.0m |
3=SC/APC |
||||||
|
1480=1480nm |
3=3.0m |
4=SC/UPC |
||||||
|
5=1.5m |
6=LC/PC |
